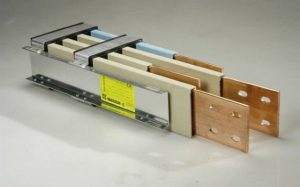

Busduct system
The busduct system offers a compact, economic and flexible alternative to cables for the transport or the distribution of energy to high power systems.
Our busduct system can be realized in Copper or Aluminum, and offers a wide choice of applications: low or medium voltage, with a rated current ranging from 25A to 6300A, and an ingress protection from IP40 to IP68 as needed.
Technical Data Value
Rated current (A) 25 – 6300
Rated voltage (V) 400 – 690 – 1000 – 24000
Insulation voltage (V) 1000 – 24000
Conductor material Cu ou Al
Housing material Al – Fe - Inox
Short time withstand current (kA/1s) 60 – 240 - 70
Ingress protection IP42 à IP68
